CuNiFe Wide Range Humbucker (Classic Sized)


All pickups are hand made to order, current build time is 40 to 45 days.

SKU: CunWRH1 Category: Tags: , , , ,


After 12 years of searching, I’ve finally managed to source threaded CuNife magnets, so here is my take on the 70’s classic.

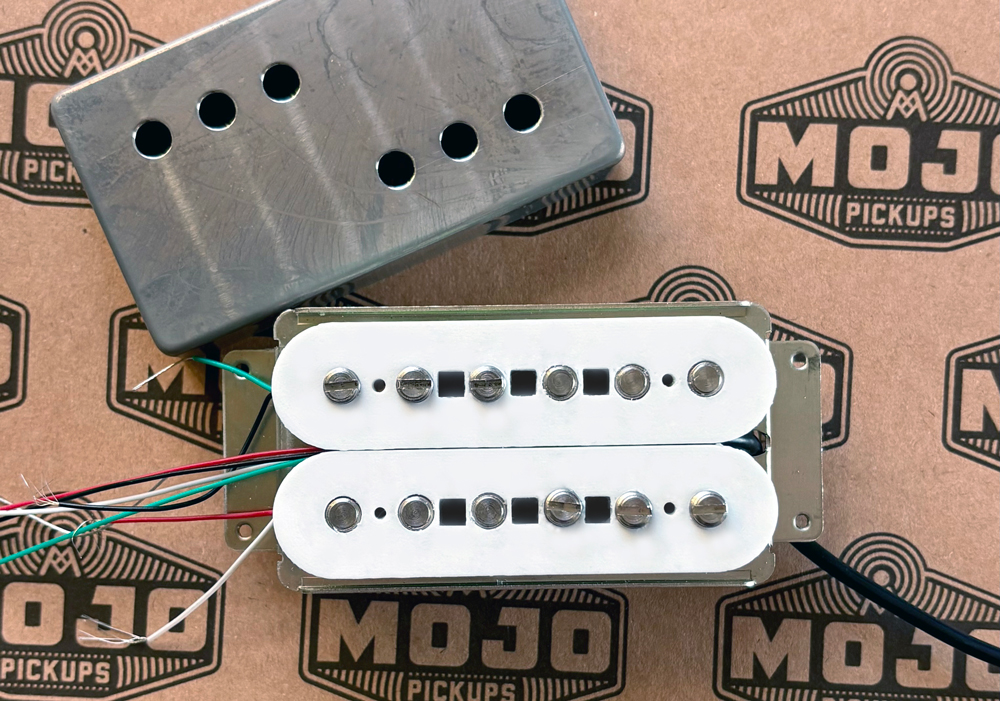

Full-sized Wide Range Nickel Plated Covers and Nickel Silver base plate (These are bigger than a Standard PAF type humbucker).
The covers are 78.6 x 44.4mm and with the base, the total length is 93.9mm.

Wound with 42awg wire, the neck has an 8.8K output and the bridge 10.5K output.

The pickups feature a reflector plate, like the originals, which adds some strength to the magnets.

As standard, they come with braided hook-up wire. (4 Conductor is an option, just leave a note at the checkout)

Mounting screw and springs are included.
